Product Features

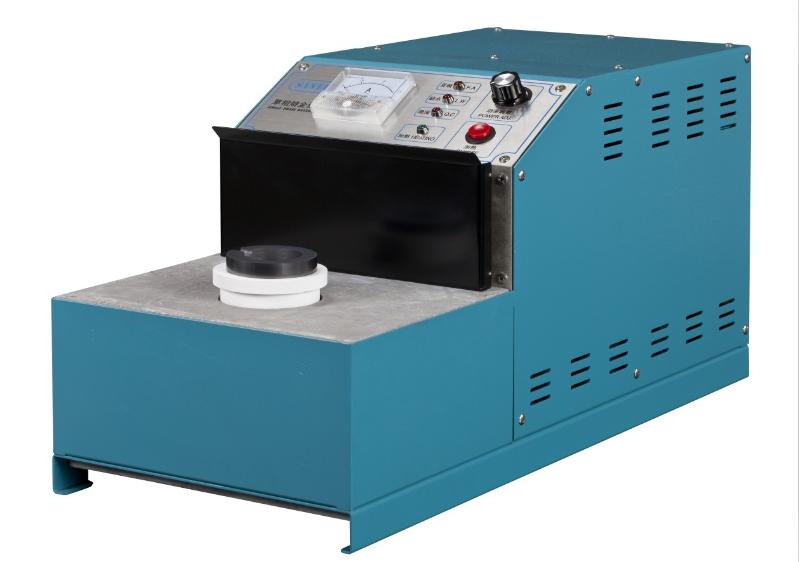

◇Desktop melting furnace uses regular electricity supply as input power
supply. It is suitable for family workshop, small scaled casting workshop and
goldsmith to use.
◇Heating method is medium frequency induction heating. A cup of gold can be
melted completely in 4 minutes;
◇Heating method uses medium frequency induction heating. It allows continuous
melting;
◇The first company that uses aluminum case. Electricity energy loss is very
little;
◇Various safety protection measures guarantee a secure environment for
operators;
◇Various protection measures facilitate an extended service life;
◇The maximum melting capacity is 2KG pure gold per crucible;
◇Shapes: Powder, particles and strip can be melted;
________________________________________________________________________________
Specifications
| Desktop Melting Furnace | |
| Suitable Location | Family workshop, small-scaled casting, recycle of polishing powder |
| Power Supply (Default) | Single-phase, AC 220V 50/60Hz 4.4KW |
| Power Supply (Selective) | Single-phase, AC 240V 50/60Hz 4.8KW |
| Power Line | Above 4mm² |
| Rated Current of Leakage Switch | 30A |
| Cooling Water Input Pressure | MIN 3 Bar / MAX 5 Bar |
| Speed of Cooling Water Input Flow | Above 3L/Min |
| Temperature of Cooling Water | 20～35℃（68～95℉）Below 40℃（104℉) |
| Temperature Display Range | 0～1370℃ （33.8～2498℉） |
| Temperature Setting Range | 0～1200℃ （33.8～2192℉） |
| Working Area Temperature | Max 1100℃ |
| Heating Method | Medium frequency induction heating |
| Temperature Control (Default) | Eye-measurement |
| Temperature Control (Selective) | PID temperature control; digital display(selective) |
| Melting Capacity | 1.0KG or 1.5KG or 2.0KG gold |
| Standard Accessories | Crucible tongs, graphite crucible, ceramic crucible |
| Protection Measurement | Water shortage, water temperature, and overflowing self-detection and protection; Not loaded (no crucible) protection |
| Overall Dimensions | H290 x W 260 x D 600（mm） |
| Net Weight | 17.5 KG |
