Product Features
◇Use Japan imported electronic components and new IGBT module. The heating
speed is 20%～50% faster than of previous system.
◇Heating method uses medium frequency induction heating. It allows continuous
melting;
◇Various safety protection measures guarantee a secure environment for
operators;
◇Various protection measures facilitate an extended service life;
◇The maximum melting capacity is 15KG pure gold per crucible;
◇Shapes: Powder, particles and strip can be melted;

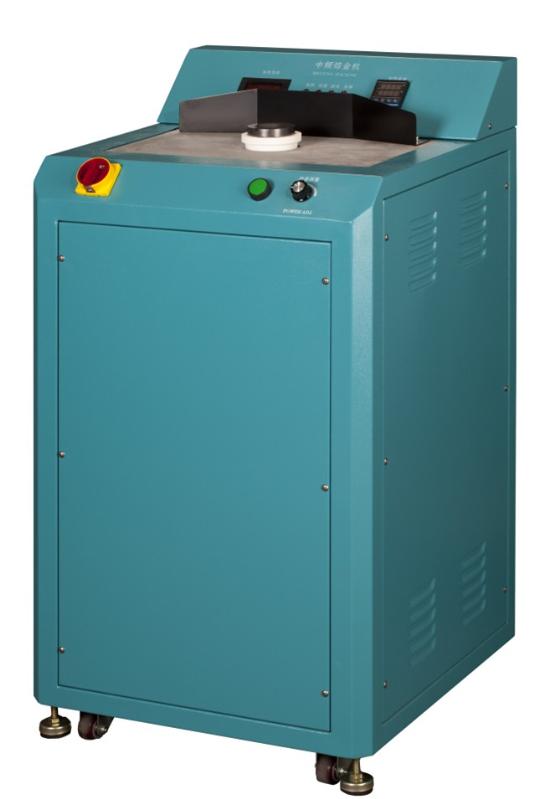

◇This three phase melting machine has been in market over 10 years. It gains
wide brand awareness for its stability.
________________________________________________________________________________
Specifications
| Three-Phase Melting Furnace | |
| Suitable Location | Small scale casting, casting material ingredients, old material cleaning |
| Power Supply (Default) | Three phase, AC 380V 50/60Hz 6.5KW |
| Power Supply (Selective) | Three phase, AC 420V 50/60Hz 6.5KW |
| Power Line | Above 4mm² |
| Rated Current of Leakage Switch | 30A |
| Cooling Water Input Pressure | MIN 3 Bar / MAX 5 Bar |
| Speed of Cooling Water Input Flow | Above 3L/Min |
| Temperature of Cooling Water | 20～35℃（68～95℉）Below 40℃（104℉) |
| Temperature Display Range | 0～1370℃ （33.8～2498℉） |
| Temperature Setting Range | 0～1200℃ （33.8～2192℉） |
| Working Area Temperature | Max 1100℃ |
| Heating Method | Medium frequency induction heating |
| Temperature Control | PID temperature control, Digital display |
| Melting Capacity | 2.1Kg or 2.5 Kg or 4KG or 5.5 KG or 10Kg or 15Kg gold |
| Standard Accessories | Crucible tongs, graphite crucible, ceramic crucible |
| Protection Measurement | Water shortage, water temperature, and overflowing self-detection and protection; Not loaded (no crucible) protection |
| Overall Dimensions | L 500x W 500 x D 815（mm） |
| Net Weight | 100KG |
