Product Features

◇Innovative nozzle’s mirror makes a more direct observation of　positioning

　of nozzle and　rubber mould.　

◇Upgraded clamp unit allowsa wider range of application than previous
　generation;

◇Position of clamp cylinderis adjustable according to rubber mould’s center
　point of　force;

◇First innovative fronthanging mechanical arms in the industry; Ordinary
　mechanical arms　and widen mechanical arms are switchable on onewax injection
　machine;

◇Fast rise and fallstructure for clamp unit, operators do not need any tools
　when　processing rubber mould of various thickness on one waxinjection　
　machine. Two fingers are　well enough to easily position the grosbeak and
　film into perfectmatch;

◇Wax injection valve uses ‘air cylinderstructure’ and ‘straight-through
　flow path’. Under same　injection pressure and temperature, 　injectiondistance of this valve is 9 times further than other　valves.
　This means the accuracy is higher andflashes is　lower than traditional
　injectors during　production. It is more suitable to be used to　produce
　big bracelet, high-precision wax accessories　and big and ultrathin wax
　components;

◇Temperature, timing and pressure arecontrolled by digital circuit, more

　accurate than logic simulation circuit;

________________________________________________________________________________

Specifications

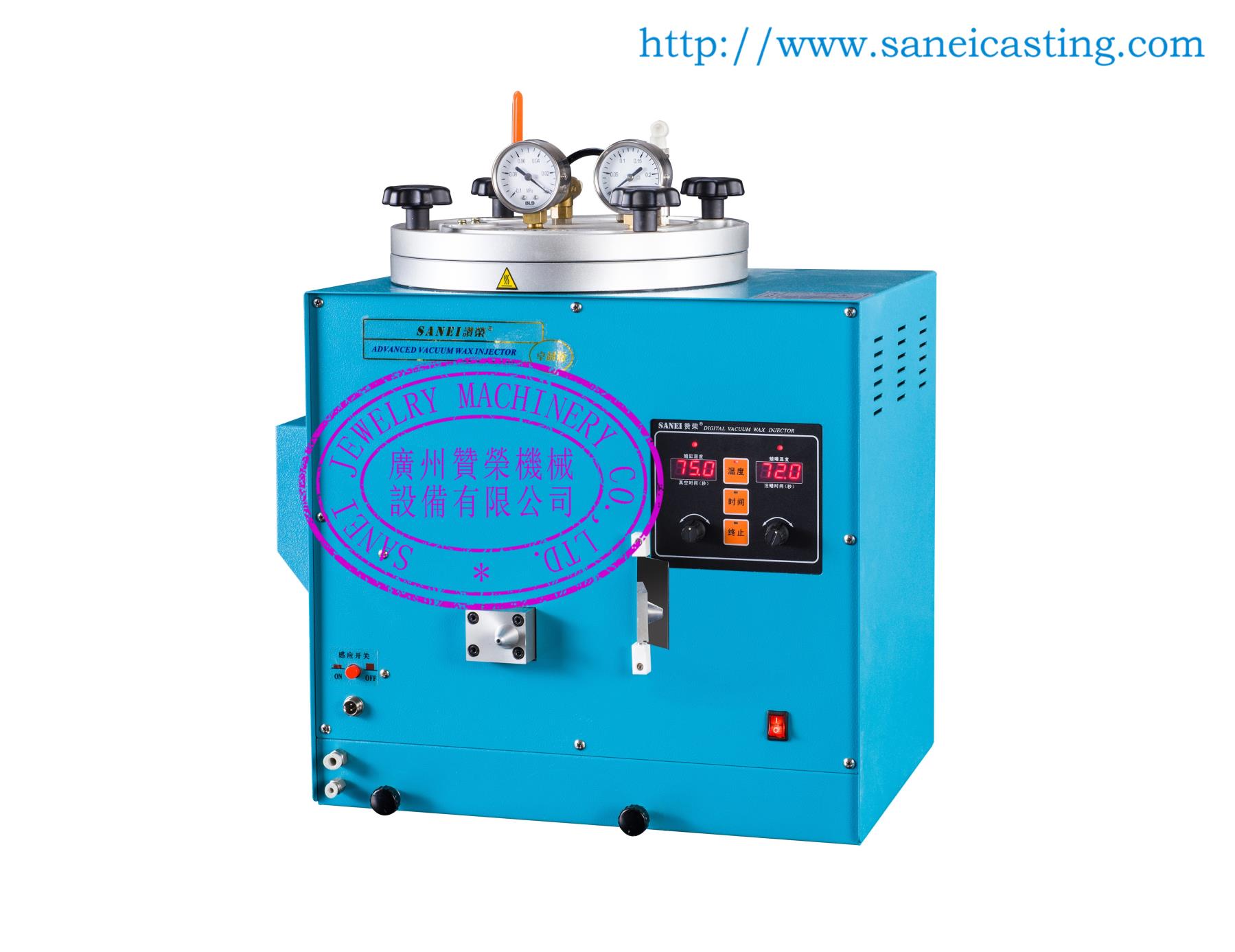

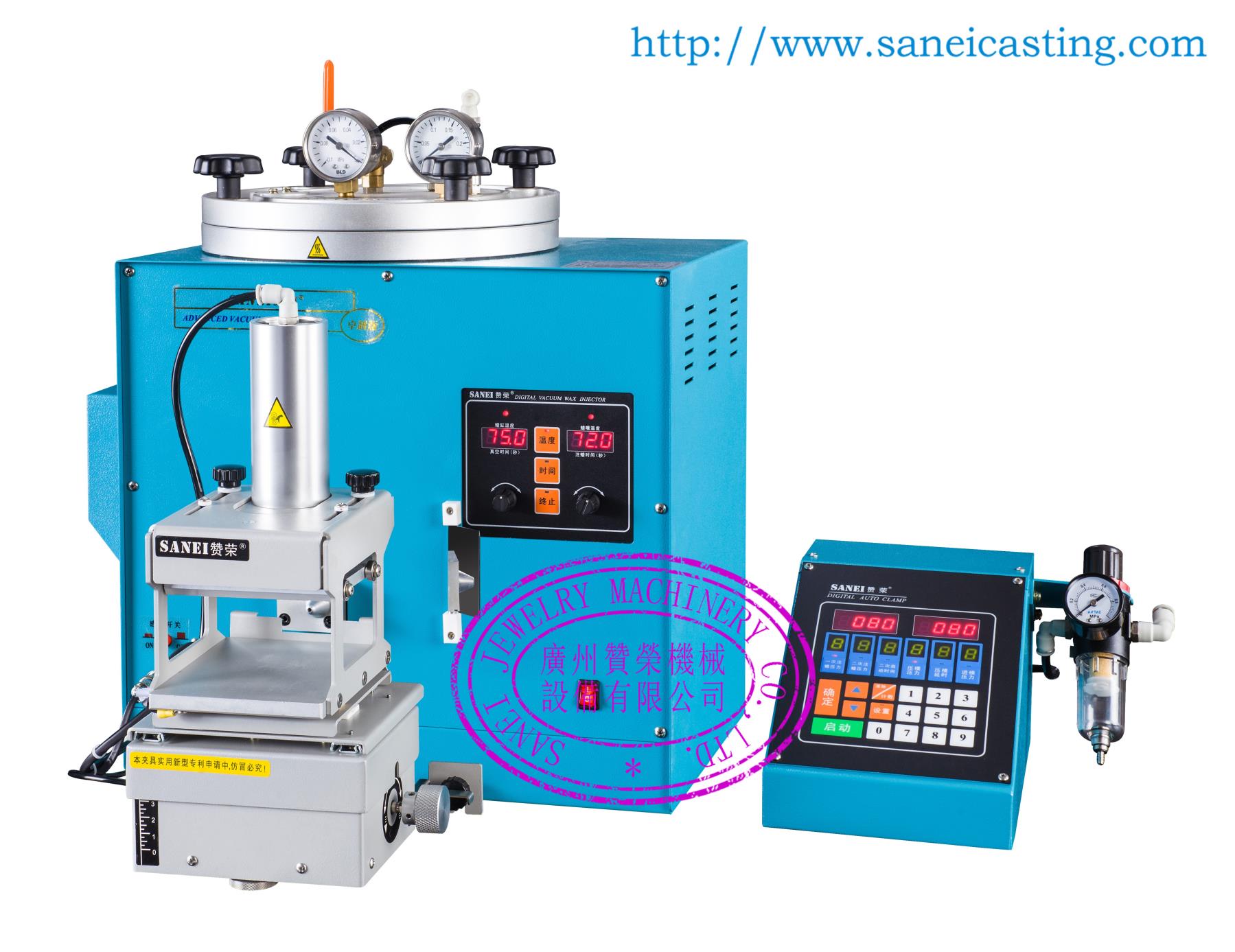

Wax Injector Specifications
Power Supply	Single Phase, AC 100-220V±10%，50/60Hz
Rated Power	500W
Temperature Display Range	40.0～99.9℃ (104～212℉ )
Temperature Setting Range	40.0～90.0℃ (104～194℉ )
Temperature Accuracy	±0.5℃
Vacuum Timing Setting Range	0～99.9(S)
Wax Injection Timing Setting Range	0.1～600(S)
Time Accuracy	0.1S
Timing for Heating	0～99H
Wax Vat Volume	Roughly 3KG
Pressure Gage Scope	0～0.25MPa (0～2.5Kg/cm²)
Fuse Rated Current	5A
Packing Size	L 532 x W 382 x D 565　mm
Net Weight	21.5KG

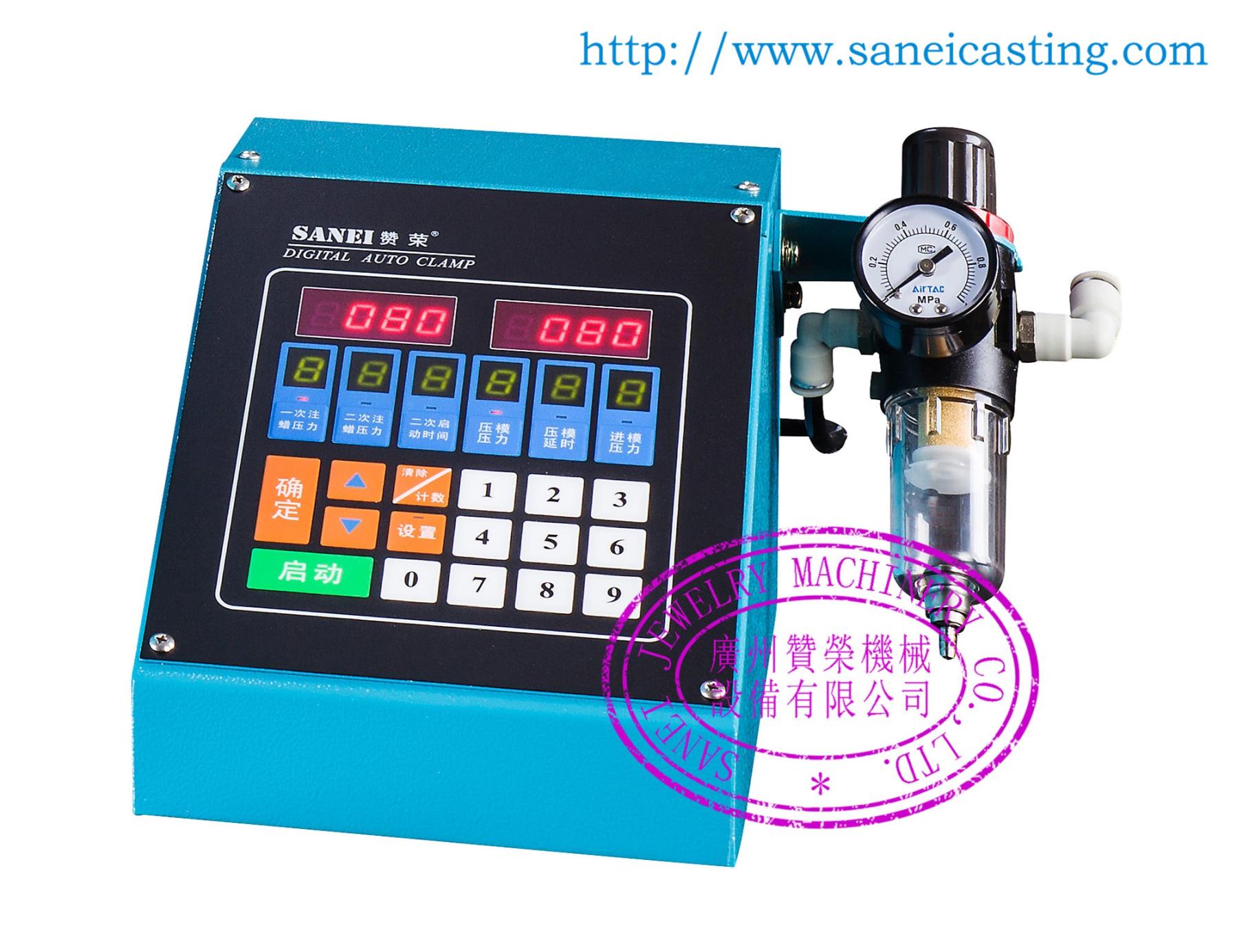

Clamp Unit Specifications
External Pressure Input	0.4～0.7MPa
Pressure Regulating Valve Pressure　Range	0.25～0.3MPa
Pressure Sensor Display Range	- 5～240KPa
primary Wax Injection Pressure Setting Range	10～220Kpa
Secondary Wax Injection Pressure　Setting Range	10～220Kpa
Secondary Wax Injection Start Time　Setting Range	0～99.9(S)
Clamp Pressure Setting Range	30～235Kpa
Forward Pressure Setting Range	65～235Kpa
Clamp hold Time Setting	0～300(S)
Max Pieces Counting	0～9999
Data Storage	10,000
Starting Mode	Magnetic Field Reaction or　Press Button
Rubber mould Size (Standard)	L 135 x W 105 x D 45 (max)
Rubber mould Size (Large)	L 135 x W 135 x D 60 (max)
Packing Size	L 543 x W 278 x D 540　mm
Net Weight	12KG
