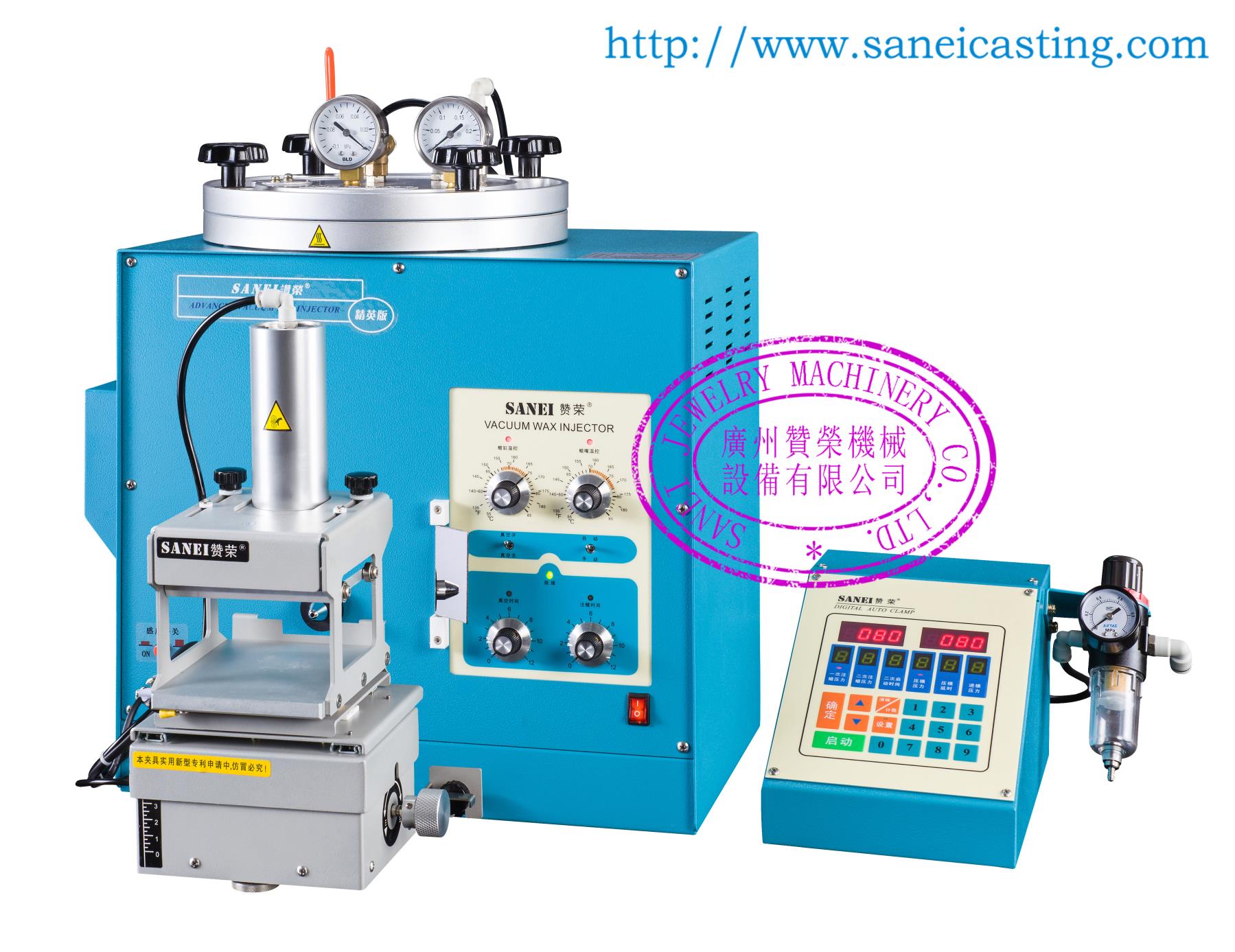

Product Features
◇Innovative grosbeak mirror makes a more direct observation of positioning of
nozzle and rubber mould.
◇Upgraded clamp unit allows a wider range of application than previous
generation;
◇Position of clamp cylinder is adjustable according to rubber mould’s center
point of force;
◇First innovative front hanging clamp unit in the industry; Standard clamp
unit and large clamp unit are switchable on one wax injection machine;
◇Fast rise and fall structure for clamp unit, operators do not need any tools
when processing rubber mould of various thickness on one wax injection
machine. Two fingers are well enough to easily position nozzle and rubber
mould into perfect match.
________________________________________________________________________________

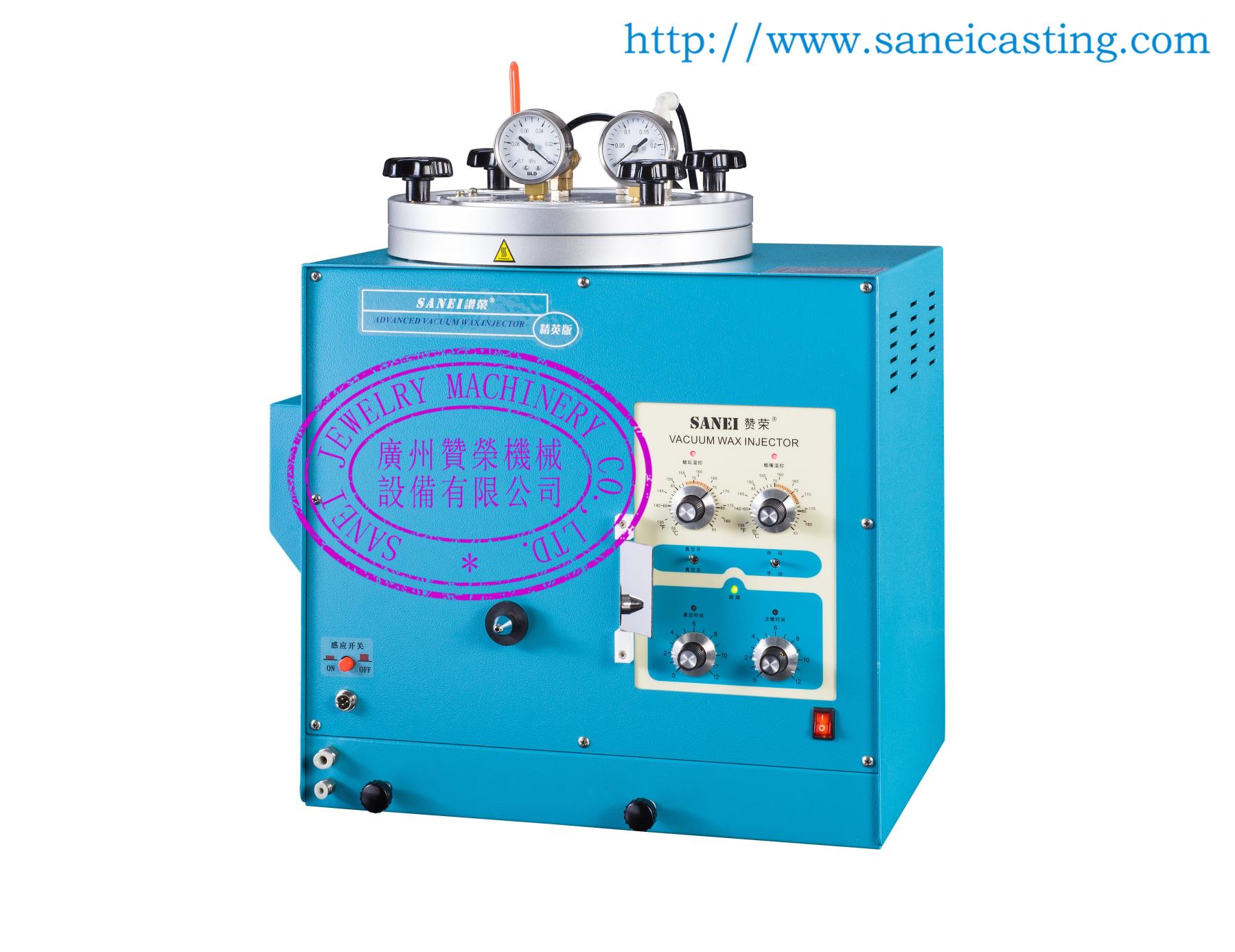

Wax Injector Specifications | |
| Power Supply | Sing phase, AC 100-220V±10%，50/60Hz |
| Rated Power | 500W |
| Temperature Display Range | 55～85℃ (131～185℉ ) |
| Temperature Setting Range | 55～85℃ (131～185℉ ) |
| Temperature Accuracy | ±1℃ |
| Vacuum Timing Setting Range | 0～12(S) |
| Wax Injection Timing Setting Range | 0～12(S) Note: In manual mode, operators could control the wax injection time. |
| Time Accuracy | 0.1S |
| Wax Tank Volume | Roughly 3KG |
| Pressure Gage Scope | 0～0.25MPa (0～2.5Kg/cm²) |
| Fuse Rated Current | 5A |
| Packing Size | L 532 x W 382 x D 565 mm |
| Net Weight | 21.5KG |

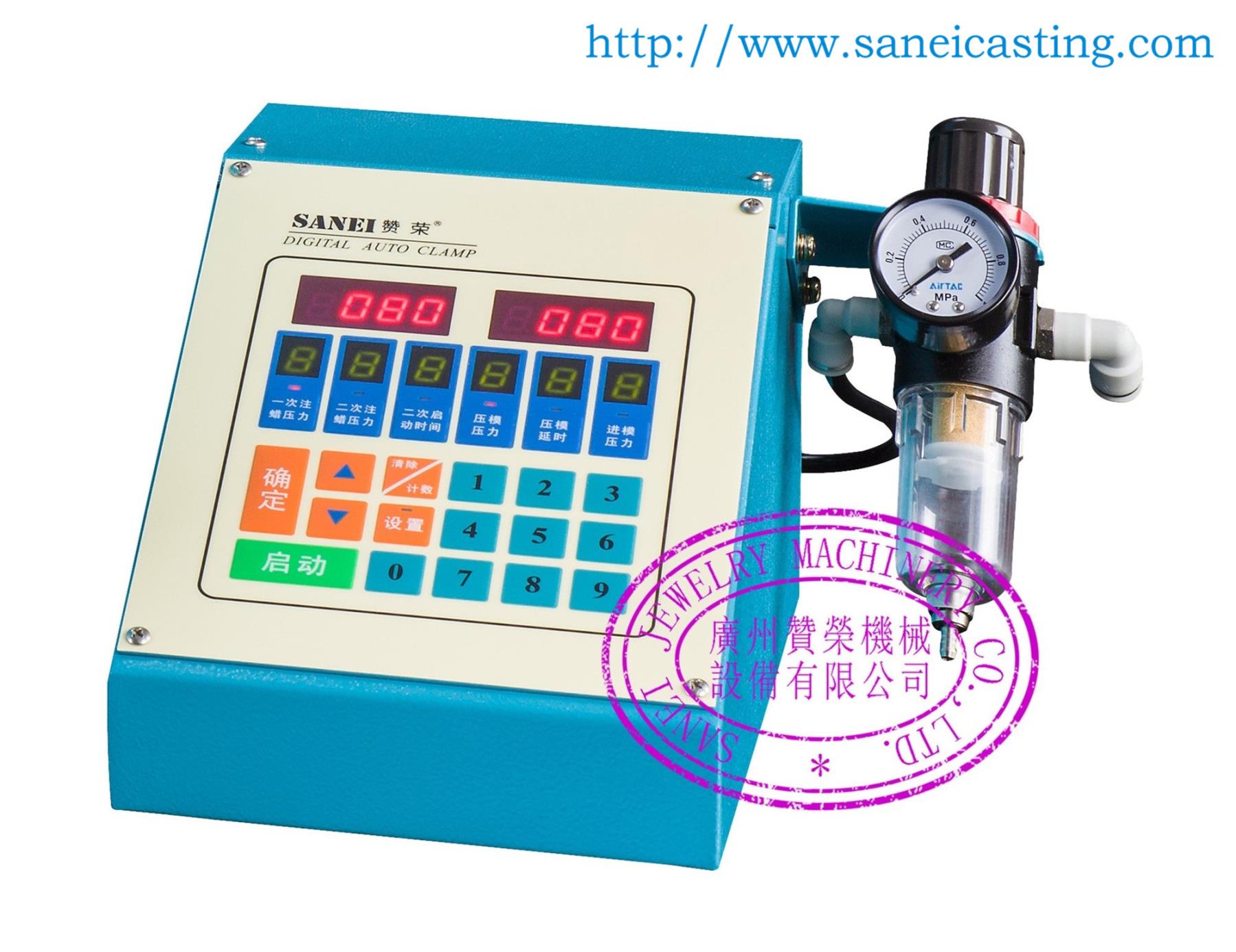

Clamp Unit Specifications | |
| External Pressure | 0.4～0.7MPa |
| Pressure Regulating Valve Pressure Range | 0.25～0.3MPa |
| Pressure Sensor Display Range | - 5～240KPa |
| Primary Wax Injection Pressure Setting Range | 10～220Kpa |
| Secondary Wax Injection Pressure Setting Range | 10～220Kpa |
| Secondary Wax Injection Start Time Setting Range | 0～99.9(S) |
| Clamp Pressure Setting Range | 30～235Kpa |
| Clamp in Mold Pressure Setting Range | 65～235Kpa |
| Clamp Hold Time Setting | 0～300(S) |
| Max Pieces Counting | 0～9999 |
| Data Storage | 10,000 |
| Starting Mode | Magnetic Field Reaction or Press Button |
| Rubber mould Size (Standard) | L 135 x W 105 x D 45 (max) |
| Rubber mould Size (Large) | L 135 x W 135 x D 60 (max) |
| Packing Size | L 543 x W 278 x D 540 mm |
| Net Weight | 12KG |
