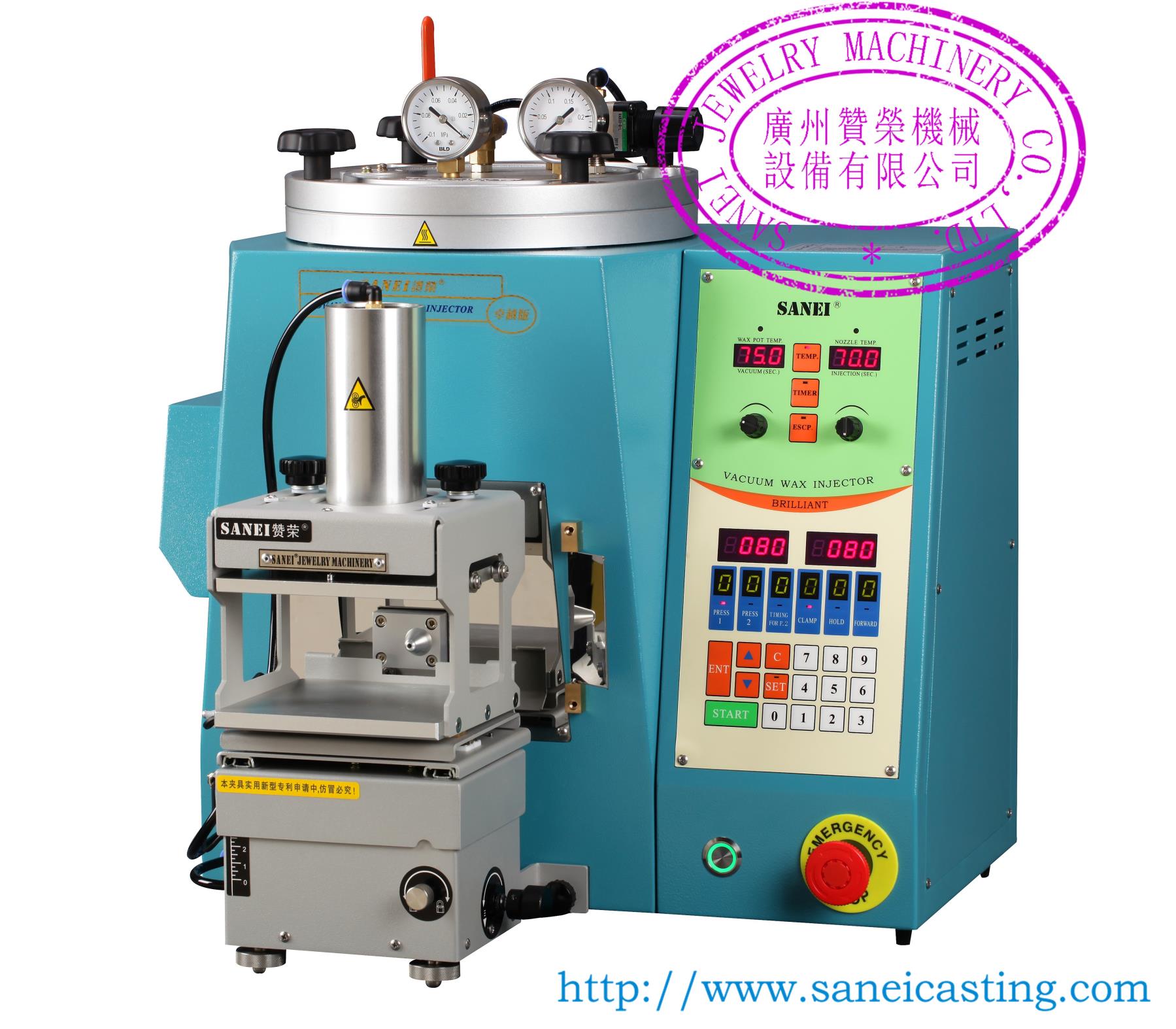

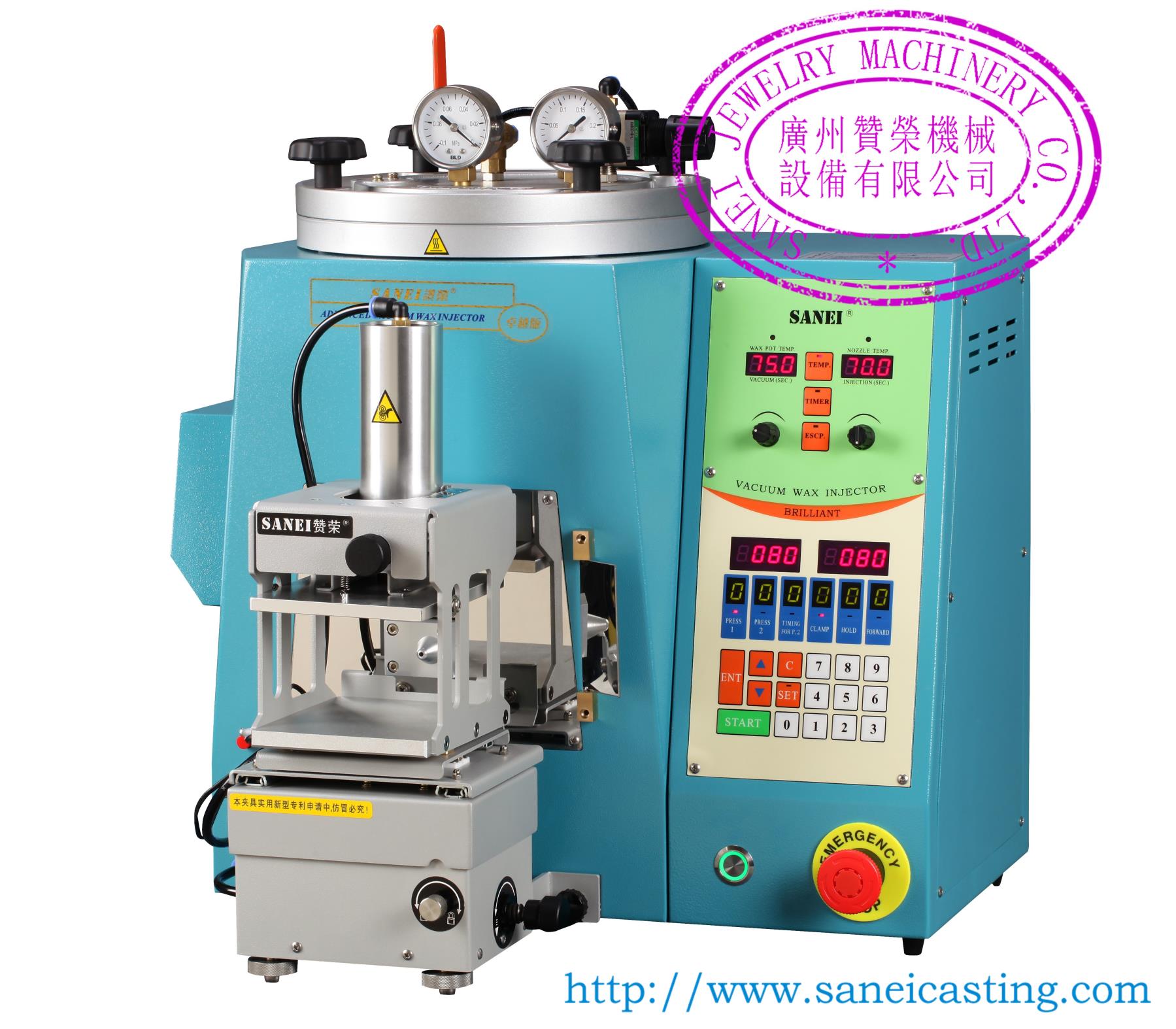

Product Features

◇Innovative nozzle mirror makes a more direct observation of　positioning of

　nozzle and rubber mould;

◇Upgraded clamp unit allows a wider range of application than previous

　generation;

◇Position of clamp cylinder is adjustable according to rubber mould’s center

　point of force;

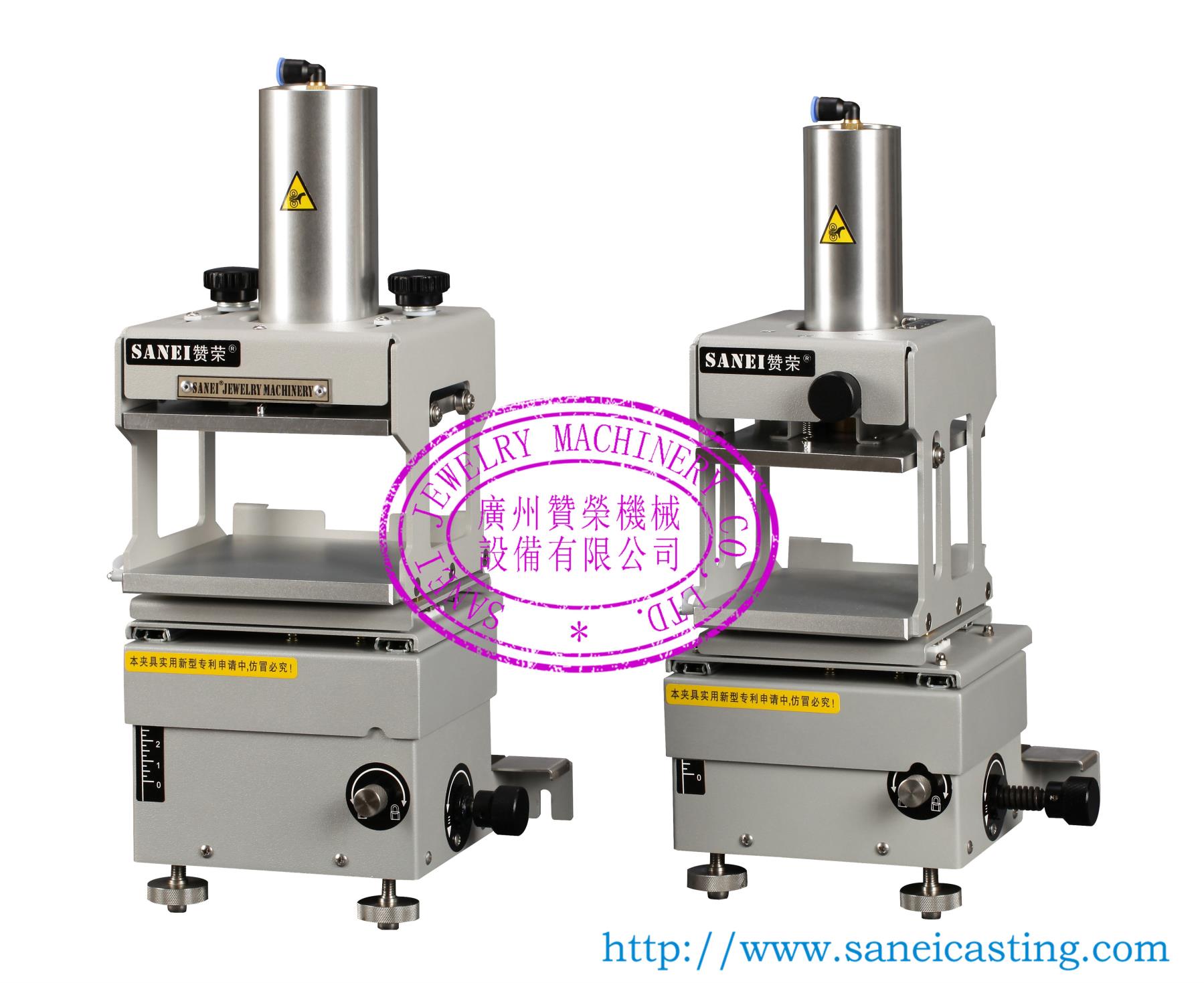

◇First innovative front hanging clamp unit in the industry; Standard clamp

　unit　and large clamp unit are switchable on one wax injector;

◇Fast rise and fall structure for clamp unit, operators do not need any tools

　when processing rubber mould of various thickness on one wax injector.

　Two fingers are well enough to easily position the nozzle and rubber mould

　into perfect match.

◇Wax injection valve uses ‘air cylinder structure’ and ‘straight-through

　flow path’. Under same injection pressure and temperature, injection

　distance　of this valve is 9 times further　than other valves. This means

　the accuracy is higher and flashes is lower than traditional injectors during

　production. It is more suitable to be used to produce big bracelet,

　high-precision wax accessories and big and ultrathin wax components;

◇Temperature, timing and pressure are controlled by digital circuit, more

　accurate than logic simulation circuit;

◇This wax injection machine uses unibody casing. Installation becomes more

　convenient and faster. 

________________________________________________________________________________

Specifications

Wax Injector Specifications
Power Supply	Single Phase, AC 100-220V±10%，50/60Hz
Rated Power	500W
Temperature Display Range	40.0～99.9℃ (104～212℉ )
Temperature Setting Range	40.0～90.0℃ (104～194℉ )
Temperature Accuracy	±0.5℃
Vacuum Timing Setting Range	0～99.9(S)
Wax Injection Timing Setting Range	0.1～600(S)
Time Accuracy	0.1S
Timing for Heating	0～99H
Wax Vat Volume	Roughly 3KG
Pressure Gage Scope	0～0.25MPa (0～2.5Kg/cm²)
Fuse Rated Current	5A
Packing Size	H 565x W 505 x D 312
Net Weight	21.7KG

Clamp Unit Specifications
External Pressure Input	0.4～0.7MPa
Pressure Regulating Valve Pressure　Range	0.25～0.3MPa
Pressure Sensor Display Range	- 5～240KPa
primary Wax Injection Pressure Setting Range	10～220Kpa
Secondary Wax Injection Pressure　Setting Range	10～220Kpa
Secondary Wax Injection Start Time　Setting Range	0～99.9(S)
Clamp Pressure Setting Range	30～235Kpa
Forward Pressure Setting Range	65～235Kpa
Clamp hold Time Setting	0～300(S)
Max Pieces Counting	0～9999
Data Storage	10,000
Starting Mode	Magnetic Field Reaction or　Press Button
Rubber mould Size (Standard)	L 135 x W 105 x D 65 (max)
Rubber mould Size (Large)	L 135 x W 135 x D 65 (max)
Packing Size	H 425 x W 210 x D 185
Net Weight	7.5KG
